1
2
3
4
5
6
7
8

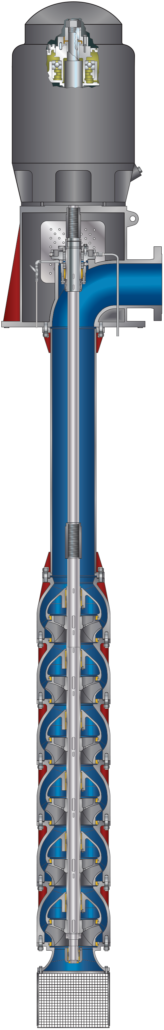

1

Strainer supplied standard in 304 stainless steel construction

2

Very large hydraulic offering with high heads per stage minimizing bowl lengths

3

Hydraulically balanced impellers with upper and lower bowl wear rings

4

420 stainless steel bowl shaft supplied standard

5

Unique sleeved bowl shaft completely protecting the shaft especially in bowl bearing locations

6

Fabricated, flanged, heavy wall column assemblies in sizes 4″ to 32″ diameter

7

Heavy duty fabricated steel discharge heads available in discharge sizes from 4″ to 36″ diameter

8

Vertical holloshaft (VHS), vertical solid, shaft (VSS) or right angle gear drive (RAG) (when Diesel engine driven) driver construction

Series 4810

Open Lineshaft Vertical Turbine Pumps

FEATURES & BENEFITS

The Series 4810 VT Vertical Turbine product line is a heavy duty vertical turbine designed for the commercial, industrial & municipal markets.  The VT Vertical Turbine can be supplied in a single or multistage orientation with a wide variety of overall length options.  Pumps can be supplied in an overall length specified by the client.  Optional material, packing or mechanical seal & thrust pot options are available upon request.

Performance:

Flows:  To 28,000 GPM [6,359 M3/HR]
Heads:  To 980 FEET [300 M]
Speeds:  3550 RPM, 2950 RPM, 1760 RPM, 1480 RPM, 1180 RPM, 980 RPM, 740 RPM, 725 RPM, 590 RPM, 490 RPM, 380 RPM
Sizes:  5AMC -> 42AMC Bowls

The 4810 Series VT Vertical Turbine product line has the following specifiable features and benefits:

  • Optional basket strainers in a variety of optional metallurgy
  • Class 30 cast iron bowls with vitreous porcelain glass lining
  • Flanged bowl construction for easy assembly and disassembly
  • Investment cast, 304 stainless steel impellers
  • 416 stainless steel shafting
  • 304 stainless steel bolting
  • Heavy duty bronze bowl bearings between each stage and under each bearing
  • Threaded column assemblies (4″ through 12″) with 420 stainless steel line shaft with flanged construction as an option (4″ through 48″)
  • Open or enclosed lineshaft construction available
  • Cast iron discharge heads (4″ through 16″)
  • Optional fabricated steel discharge heads (4″ through 48″) with heavy duty double bearing stuffing box assembly
  • Ductile iron deepset heads (8″ through 12″)
  • Stuffing box features 304 stainless steel shaft sleeves, 304 stainless steel gland & 304 stainless steel lantern ring
  • Options for a wide variety of component & cartridge mechanical seals
  • Full optional metallurgy support for seat water applications (all bronze, all 316SS, all 2205 & 2507 super duplex stainless steel)
